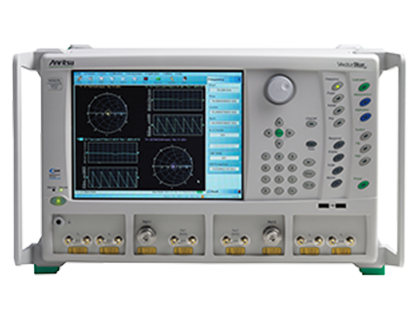

VectorStar offers a performance benchmark for S-parameter measurements of RF, microwave and millimeter-wave devices providing engineers access to a powerful measurement tool for performance analysis
MS4640B 10 MHz to 20 GHz/40 GHz/70 GHz
技术资料下载：
MS4640B 10 MHz to 20 GHz/40 GHz/70 GHz手册
Spectrum Analyzer Option
- SPA available from 70KHz to 20/40/70/110/125/145 and 220GHz. Also available for banded configuration to 1.1THz.
- Dual SPA mode available: suitable for Mixers/Amplifier/ Harmonics /Spurious testing.
- SPA available on all ports. User can define which port to use as SPA port.
- Several detection types available in classical mode: Peak, minimum, RMS, Mean.
- Various math functions can be applied on SPA mode like Min hold/max hold/ user defined equations.
- Sources and receivers can be independently configured. Can be used as Tracking Generator.
- For units that have a dual source, a dual drive option is available. Support for external source control also possible.
- Phase synchronization for units with Dual source available. This feature allows users to control and configure the phase between the two sources.
- Source and receiver attenuator available with VNA can be activated in SPA mode. Recommendation to use option 62 (with attenuator on receiver side) for measuring the spectrum content of high-power devices.
- Software option: easy to install and upgrade existing user equipment.
