8槽（4个PXI插槽，2个混合插槽，1个PXI Express系统定时插槽），高达3 GB/s的PXI机箱—PXIe-1062Q专为各种测试和测量应用而设计，并提供了一个高带宽背板。 NI PXle-1062Q具有4个PXI外设插槽、1个具有系统定时功能的PXI Express插槽以及2个可支持PXI与PXI Express外设模块的PXI Express混合插槽。

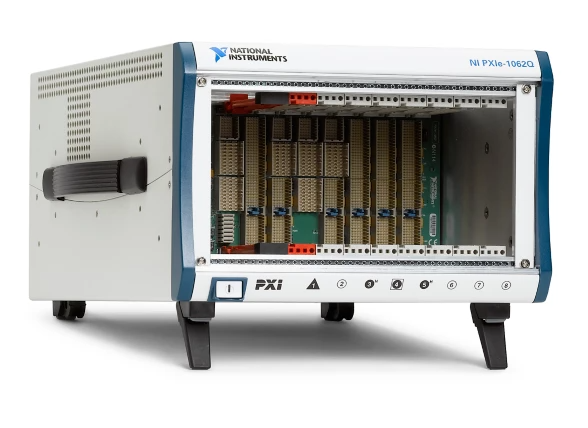

NI PXIe-1062Q 数据采集卡

ꄴ前一个： NI PCI-6239 数据采集卡
ꄲ后一个： NI PXIe-1078 数据采集卡

产品详情

技术资料下载：PXIe-1062Q 手册

Features:

  • Accepts 3U PXI, PXI Express, CompactPCI, and CompactPCI Express Modules
  • Up to 1 GB/s Per-Slot Dedicated Bandwidth
  • 8 3U Slots



The NI PXIe-1062Q 8-slot chassis, designed for a wide range of test and measurement applications, provides a high-bandwidth backplane with up to 1 GB/s per-slot dedicated bandwidth to meet high-performance needs. The NI PXIe-1062Q has four PXI peripheral slots, one PXI Express slot with system timing capabilities, and two PXI Express hybrid slots that accept both PXI and PXI Express peripheral modules. The NI PXIe-1062Q chassis operates over a 0 to 55 °C temperature range and holds acoustical noise as low as 43.6 dBA at temperatures below 30 °C. It incorporates all of the features of the latest PXI specification, accepting both PXI and PXI Express modules. The chassis features a built-in 10 MHz reference clock, PXI trigger bus, and PXI star trigger for PXI modules as well as a built-in 100 MHz reference clock, SYNC 100, and PXI differential star trigger for PXI Express modules. Providing more than 3 GB/s total system bandwidth, this high-performance chassis can meet a variety of high-throughput application needs.
